Range Rover P38 - Electrics

The P38 has a lot of electrical equipment fitted and has a reputation for electrical issues. This is 1990's technology comprising of lots of individual control modules and pre-dates the canbus systems commonly used today.
But there are some things to be aware of that can help keep the electrical gremlins at bay.

A Decent Battery

The P38 is very sensitive to low voltage. A simple low voltage can make the BECM (Body Electronic Control Module, main computer located under the front RH seat) throw up all kinds of random faults such as gearbox warnings.
To prevent against this all seasoned P38 owners will tell you to fit the biggest battery you can. The Hankook MF31-1000 is the current (no pun intended) battery of choice and is available via the link below the picture.

Mobirise

Better pictures to come.

Mysterious Battery Drain - The RF Receiver

There are plenty of complaint about the batteries in P38s going flat overnight, particularly if the smaller recommended battery has been fitted. One common cause for this can be signals being picked up by the security system keeping the BECM constantly active. The frequency used by the remote signal from your key is close to that used by modern Wi-Fi. If you are parked in a strong Wi-Fi area the security system thinks it is being swamped by 'code grabbing' equipment and so wakes the BECM and immobilises the vehicle.

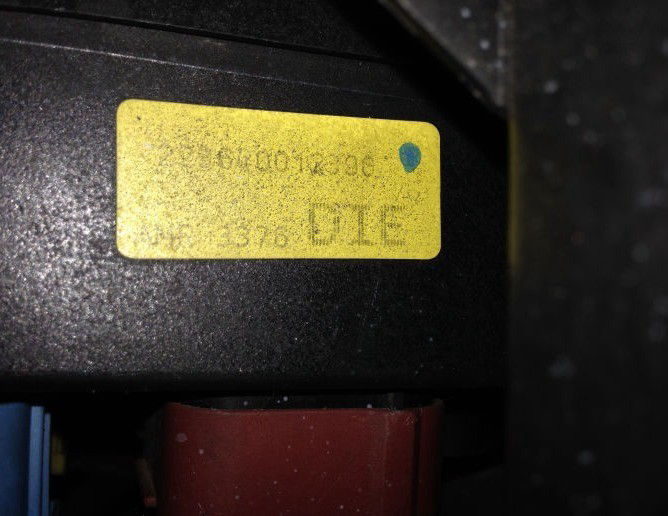

There is a filter in the system located near the RH C-pillar that Land Rover updated twice, once mid way through production and then again after production had ceased so only available over the parts counter. The latest version is supposed to be effective but is rather expensive. But enthusiasts from one of the forums (linked at the bottom of the main page of this P38 section) have created their own for a lot less which I have fitted.

Join a Decent Forum

By far the best piece of advice I can give is that you join a decent forum. This invaluable tool can make all the difference to your ownership experience. Top of the list is the one linked below:


www.RangeRovers.pub

Mobirise

The contents of this website are purely a reflection of my own experiences and knowledge gained whilst working on my various projects. Anything you do based on what you have read here is done so entirely at your own risk.
Personally I wouldn't trust some like me with a lawn mower! You have been warned! Flapper-bat!
